- Bearing Type: Ball Bearing
- Cooling System: Oil & Water Cooled
-
Turbine Housing: Externally Wastegated 0.61a/r - 0.83a/r - 1.01a/r
- Base Flange: V-Band
- Exhaust Outlet Flange: V-Band
- Horsepower: 450 - 900hp
- Displacement: 2.0L - 4.5L
Features
- GEN 2 Aerodynamics feature increased horsepower range
- New fully-machined Speed Sensor port
- Sold as complete assembly kits (Supercore + Turbine Kit)
- Reverse Rotation options available
- Interchangeable with GT and GTX GEN I Models
Product Notes:

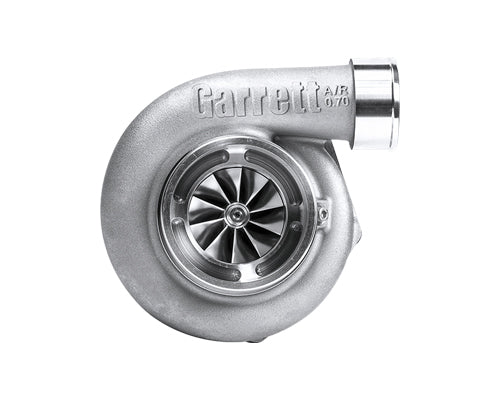

- The GTX3582R GEN II is outline interchangeable with any existing GT3582R and GTX3582R T3 V-Band In/Out Turbochargers.
- Supplied complete with turbine housing inlet & outlet v-band clamps, and Turbine Housing lock plates.
- Turbine Outlet Flange sold separately.
| Supercore Reference Data | Compressor | Turbine | ||||||
|---|---|---|---|---|---|---|---|---|
| Supercore P/N | Inducer | Exducer | Trim | A/R | Inducer | Exducer | Trim | |
| 851154-5004S | 66mm | 82mm | 64 | 0.70 | 68mm | 62mm | 84 | |
| Turbocharger P/N | Inducer | Exducer | Trim | A/R | Inducer | Exducer | Trim | A/R |
| 856801-5081S/80S/79S | 66mm | 82mm | 64 | 0.70 | 68mm | 62mm | 84 | 0.61/0.83/1.01 |
