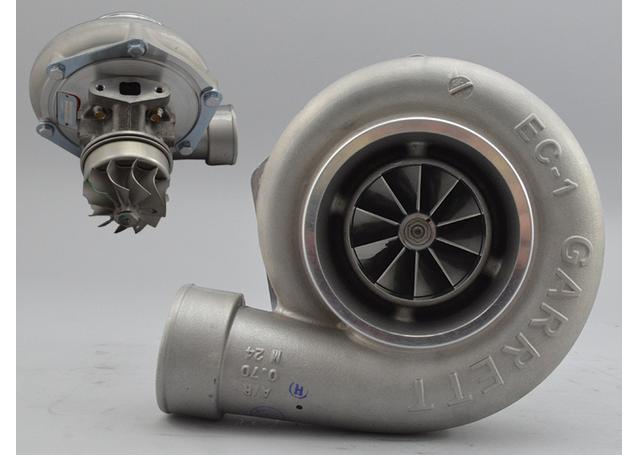

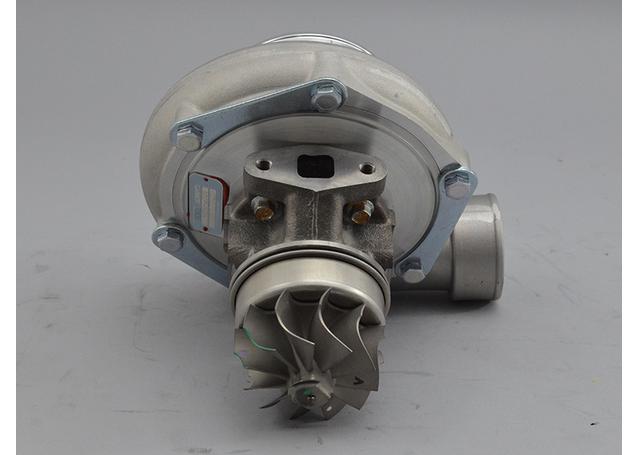

- Bearing System: Journal Bearing
- Cooling System: Oil Cooled Only
- Horsepower: 450 - 700
- Ported Shroud Design for Surge Resistance
- Available in both Journal Bearing and Ball Bearing options
- Forged Fully Machined Billet Compressor Wheel
- Lightweight Aluminium Back plate
- Inconel Super-Alloy Turbine Wheel

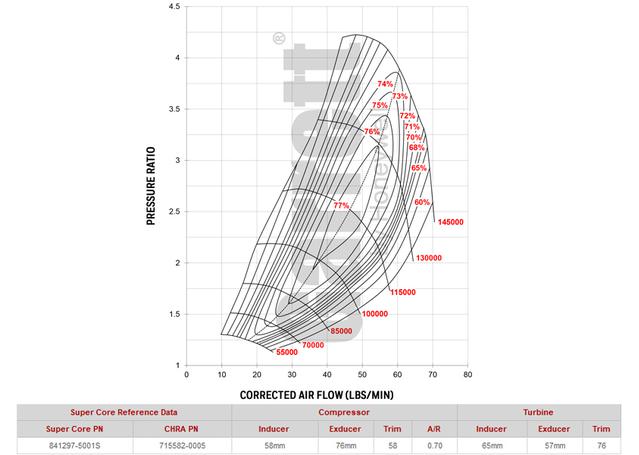

| Super Core Reference Data | Compressor | Turbine | ||||||
|---|---|---|---|---|---|---|---|---|
| Super Core PN | CHRA PN | Inducer | Exducer | Trim | A/R | Inducer | Exducer | Trim |
| 841297-5001S | 715582-0005 | 58mm | 76mm | 58 | 0.70 | 65mm | 57mm | 76 |
| 841691-5001S | 757197-0009 | 58mm | 76mm | 58 | 0.70 | 65mm | 57mm | 76 |

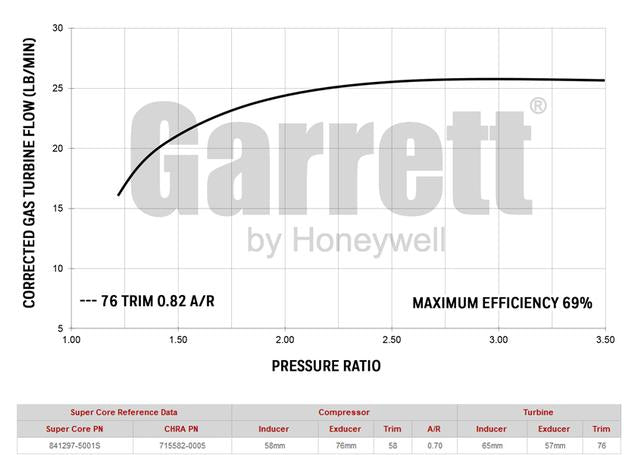

| Notes: | Turbine Kit PN | A/R | Inlet | Outlet | Wastegate | Divided | Trim | |
| Super Core and Turbine Kit Sold Separately | 844669-0001 | 0.48 | T3 | 4-Bolt | Free Float | N | 76 | |
| 844669-0002 | 0.63 | T3 | 4-Bolt | Free Float | N | 76 | ||
| 844669-0003 | 0.82 | T3 | 4-Bolt | Free Float | N | 76 | ||
